Dura Trac Calf Stalls & Calf Pens for Healthy Calves

The Dura Trac Calf Stalls and the NEW Dura Trac Calf Pens will provide the durability and comfort you need for healthy calves. The only difference between the two is customer preference. Calf stalls are single housing units that begin with a “starter” stall. “Add-on” stalls are attached to the starter. You can then continue with the add-ons until the row is complete. The Calf Pen is one larger unit that can transition from two or three stalls to one larger pen by removing the center dividers. Calf Pens also have a “starter pen” and “add-on” pens that share a fixed side.

Built to Outlast All Others

However, the similarities are many. For instance, both are built with sturdy pipe and include strong metal flooring. In addition, both styles are completely coated with plastisol, making them extremely durable. Moisture is unable to penetrate the steel because of this tough coating. For this reason, Dura Trac Stalls and Pens will outlast all other calf stalls, hutches, and suites.

CG_2052_A-1

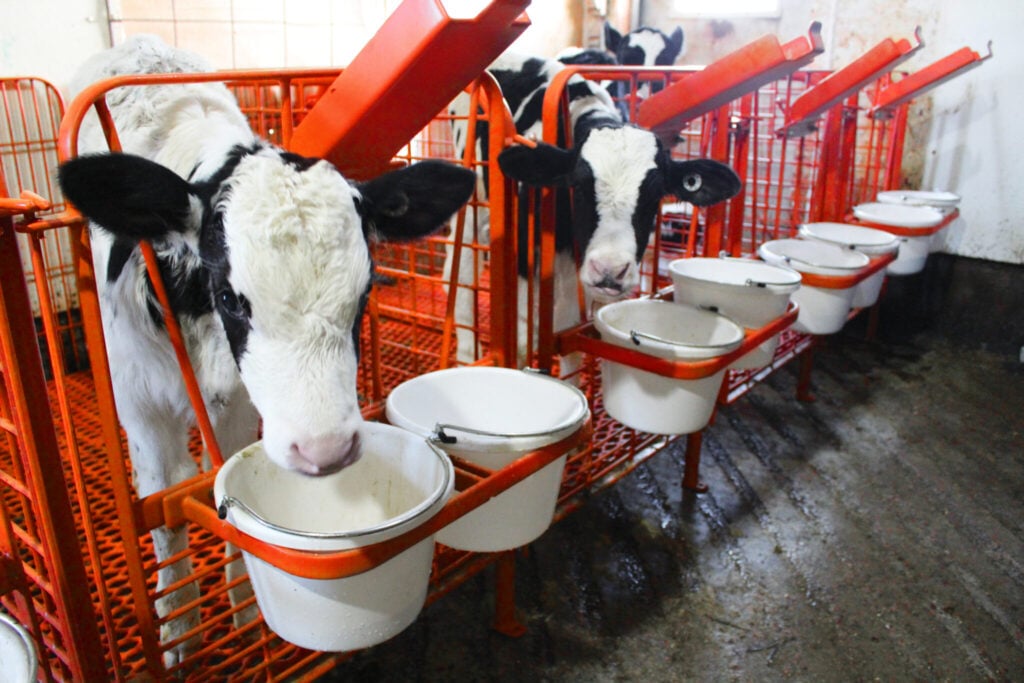

Calf-Stalls-NE-IA-043-2048x1365

Dura Trac Calf Stalls

Dura Trac Calf Stalls is a long-time customer favorite that our company introduced during the World Ag Expo in 2013.

Calf Stall Options

First, the flooring choices are woven wire and expanded metal, both with appropriately sized openings. The plastisol-coated floors aid traction. Because of the superior footing, floor-related injuries are reduced when compared to bare steel, concrete, or other types of flooring. Also, the thick plastisol coating helps to keep calves clean and dry without the need for additional bedding.

Secondly, we provide two side panel options: vented and solid. Your decision on side panels will depend on your preference and location. Vented sides allow the air to flow through freely, while solid sides prevent any unwanted drafts in colder climates and limit contact between calves.

Request a Sample

Save Over $900 Per Stall Each Year with ADA Dura Trac Calf Stalls

Dairy producers across the U.S.—from Arizona to Michigan—are cutting costs and improving calf health by switching to ADA Dura Trac Calf Stalls. Designed with raised flooring to keep calves clean and dry, these innovative stalls eliminate the need for bedding and drastically reduce labor requirements.

Why Make the Switch?

Traditional plastic or fiberglass calf huts are labor-intensive and costly to maintain. ADA Dura Trac Calf Stalls offer a smarter, more efficient solution—and the numbers speak for themselves.

Annual Savings Breakdown Per Stall

1. Reduced Calf Mortality – $116.90 Saved

National average calf mortality rate: 5.5%
ADA stalls cut mortality by 50%
Savings per calf per cycle: $23.38
5 calving cycles per year: $23.38 × 5 = $116.90

2. No Bedding Needed – $75.00 Saved

Average straw cost per cycle: $15.00
5 cycles per year: $15.00 × 5 = $75.00

3. Labor Savings – $750.00 Saved

Bedding requires ~10 hours per calf per cycle
Labor cost: $15/hour
5 cycles per year: $150 × 5 = $750.00

Total Annual Savings: $941.90 Per Stall

Most farms see a full return on investment within the first year, plus long-term improvements in calf health, cleanliness, and operational efficiency.

What’s included:

Front and rear gates
Two side panels for the starter unit and one side panel for each add-on unit, either vented or solid
Drop-in connector pins to connect everything together
One Dura Trac Clearspan calf floor, either coated expanded metal or woven wire
A double bucket rack that attaches to the front gate
Two 8-quart buckets

Calf stalls measure 73 inches deep from the front of the bucket holders to the back of the stall. The actual calf area is 60 inches deep and 30 inches wide.

Dura Trac Calf Pen System

We have responded to customer requests and are excited to introduce a new calf product! The Dura Trac Calf Pen Systems are large pens able to convert from group calf pens to single stalls. The unit is built as one large pen with removable dividing panels.

“Starters” and “Add-Ons”

Like the calf stall, there is also a “starter” unit with four outer sides. To fill in the row of pens, “add-on” calf units can be attached that will share a side with the pen before it. Choose between our tried-and-true Clearspan Calf expanded metal or woven wire flooring. Also, depending on your location and preference, select either solid or vented side panels.

Calf Pen Flooring and Side Panel Options

There are a few standard-size options as well. The Triple 30X60 Convertible Calf Pen is 102″ wide x 62″ deep and can be used as one large pen or divided into three stalls. It can also be used as one 30″ x 60″ stall and a 60″ x 60″ pen by only using one of the divider panels. The Double 30X60 pen dimensions are 70″ wide by 62″ deep, and when using the divider panel the individual stalls are 30″ x 60″.

We also offer a size option that provides even more space for each calf. The Double 40X60 pen dimensions are 85″ wide x 62″ deep and when the divider is in place each stall is 40″ x 60″. Bucket holders will add 12″ to the depth. All three sizes have the option of being elevated with legs or not elevated with bolt-down tabs.

Request a Sample

This is what is included with the Triple Calf Pen System:

One front panel
Two side panels for the starter pen and one for add-on pens – either vented or solid
Three front calf doors
One rear panel
One Dura Trac Clearspan Calf floor – woven wire or expanded metal
Two removable stall divider panels, vented or solid
Drop-in connector pins
Bucket holders
8-quart buckets
All necessary hardware

2-Quart or 3-Quart polyvinyl-coated metal bottle holders are an option for all Dura Trac Calf Pen Systems and Calf Stalls.

A thick layer of plastisol that is strongly bonded to the metal coats the entire unit.

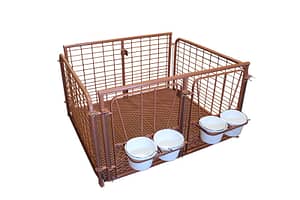

This is what is included with the Double Calf Pen System:

One front panel
Two side panels for the starter pen and one for add-on pens – either vented or solid
Two front calf doors
One rear panel
One Dura Trac Clearspan Calf floor – woven wire or expanded metal
One removable stall divider panels, vented or solid
Drop-in connecter pins
Bucket holders
8-quart buckets
All necessary hardware

Calf Stall Bottle Holder

The accessories shown are compatible with the Calf Stall and Pen System. Also, this completely polyvinyl-coated steel bottle holder easily attaches to the front gate with options available for either a two-quart or a three-quart bottle. Additionally, our bottle holders come with a backstop to keep the bottle from being pushed out, saving you from picking bottles up off the ground. The Calf Pen System and the Calf Stalls include 8-quart feed and water pails.

Related Products

Superior Footing for Animal Safety

Dura Trac Calf Stalls and the new Calf Pen systems install quickly and easily.

Calves remain comfortable and dry.
In addition, there is no need for the expense of extra bedding.
Secure gates provide easy access to the calf.
Also, cleaning is easy, reducing labor expenses.

Need a Custom Layout Quote?

Let us know if you are looking for pens or stalls. Here are a few questions we will ask:

Do you need solid side panels or vented side panels?
What type of mesh would you like? We offer woven wire and expanded metal.
Should bottle holders be included in your quote?
Let us know any additional information and include any questions you have.
