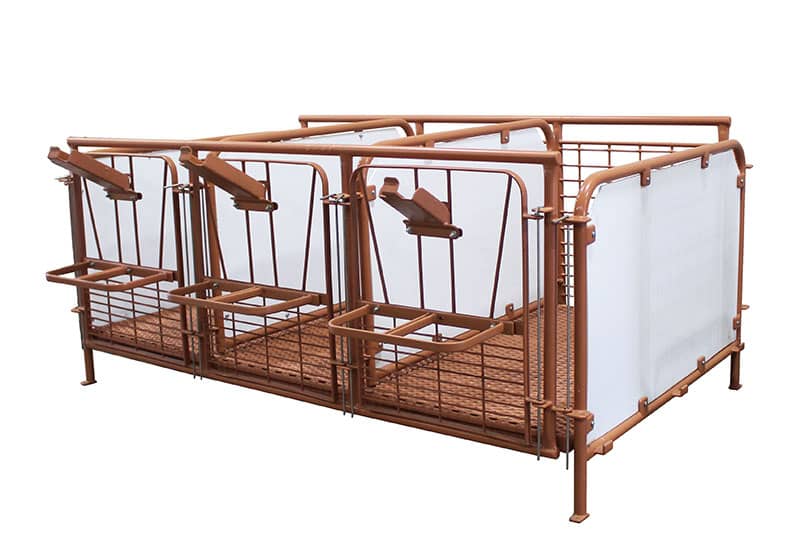

Triple 30X60 Convertible Calf Pen

One front panel for the 3-stall calf pen, two side panels for the starter pen and one for add-on pens, three front calf gates, one rear 3-stall gate, one Dura Trac Clearspan Calf floor, two 3-stall divider panels, drop-in connector pins, three bucket holders, six 8-quart buckets, and the necessary hardware are all included with the Calf Group Pen.

Categories: , SKU: CP


How the Convertible Triple 30X60 Dura Bilt Calf Pen System Works

group calf stall

Each row has one starter pen. Add-on pens complete the row.

You will need one Calf Pen starter unit for each row of pens. The starter calf pen has two side panels and two three-stall divider panels. For each additional pen in the row, you will use an add-on pen. Each add-on pen has one side panel and two three-stall divider panels because it shares a side panel with the pen before it. The divider panels are removable to create one large pen that easily converts to two or three stalls when using the divider panels. The entire calf pen is completely coated with durable plastisol (polyvinyl).

Two styles of side and divider panels are available. The vented sides allow air to flow through easily and solid panels can be used if you prefer to limit drafts and contact between calves.

Each pen includes a Dura Trac Clearspan floor in either expanded metal or woven wire. Each calf floor design offers superior footing. The calf-appropriate mesh size aids in traction. For calves up to 300 pounds each. Consider adding the completely coated bottle holder available for 2 and 3-quart sizes.

The overall width of the Triple 30X60 Dura Bilt Calf Pen is 102 inches. It is 74 inches deep when including the bucket holders. The calf area is 60 inches deep. When the dividers are in place, each calf pen space is 30 inches wide.
