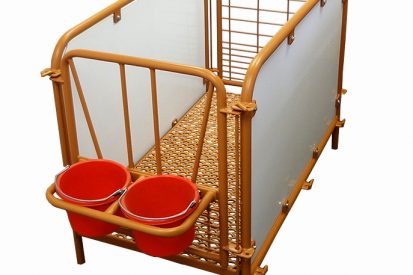

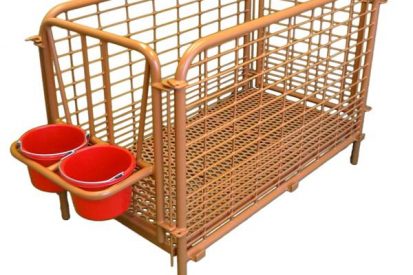

Dura Bilt Calf Stall Installation

Calf Stall installation is quick and easy with the Dura Bilt Calf Stall. Watch this short step by step video for complete demonstration.

Video Instructions for Calf Stall Installation

Start  Begin your calf stall installation by attaching the back gate to the first side panel by lining up the holes and inserting a drop rod.

0:28  Repeat with the second side panel.

0:51  Pick up floor using a drop rod and rest it on the tabs on both side panels.

1:34  Continue down the row starting with the back gate and moving to the next side panel.

2:56  Attach front gates with the rods on the gate facing the inside of the stall.  Line up and drop in the rods.

3:54  Attach the bucket holder using a 9/16″ socket impact wrench and a box end.  Line up the holes and come from the inside to insert the bolts.  Attach the outside bolts first and finish with the center bolt.  Attach washers and nuts and tighten.

6:30  Walkways (optional)  Place the walkway floor right next to the stall.  Use the peg holes in the corner tabs to attach floor to the concrete.

For more information regarding your calf stall installation, contact ADA Enterprises today.  Or call Monday through Friday, 8:00 a.m. until 4:30 p.m., at 641-324-1093 or toll free U.S. and Canada 800-533-6033.

Calf Stall Accessories

Accessories shown are compatible with the Dura Bilt Calf Stall.

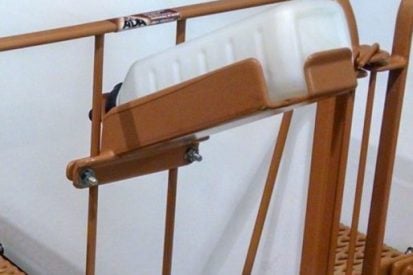

Bottle Holder

This completely poly-vinyl coated steel bottle holder easily attaches to the Dura Bilt Calf Stall with options available for either a two or a three quart bottle. Our bottle holders come with a backstop to keep the bottle from being pushed out, saving you from picking bottles up off the ground.
calf stall

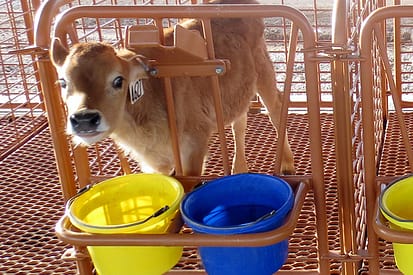

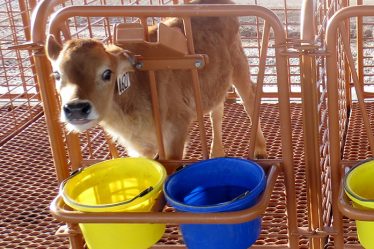

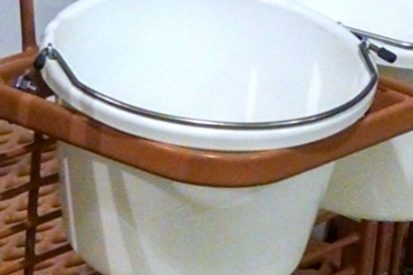

Feed & Water Pails

Feed and water pails are 8 quart sizes.

Learn more about Dura Bilt Calf Stalls and how they will work to your benefit! Call us today or find out more by clicking the link below.

Contact ADA Enterprises

Product Reviews

farmer and family dura bilt calf pen system
Tom, a Dura Bilt Calf Pen System User

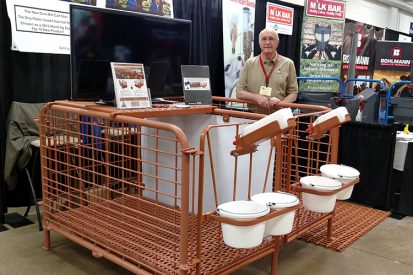

We caught up with Tom, a calf pen system owner, at the Central Plains Dairy Show!

calf pen walls
Josh from Hinkley Dairy

Josh from Hinkley Dairy tells us what he likes about the Dura Bilt Calf Stalls. Easy to clean, calves are comfortable, and many more!

dairy testimonial
Al Safi Dairy
Herds Manager

From a Dura Bilt Calf Stall customer: With our new calf rearing system it is easy to achieve our target weaning weights on a monthly basis with less mortality. 800 female calves monthly weaned at 78 days of age at an average weight of 104 kg.

calf stalls
John Kimberly from Kimberly Farms in Connecticut

John Kimberly of Kimberly Farms (Facebook) purchased Calf pens from ADA Enterprises in 2016 and hasn’t lost a calf since. He admitted he was initially hesitant to buy Dura Bilt stalls because he was a believer in straw bedding, but the results – no lost calves in 3 years – proved he made the right…

Related Products

Dura Trac Calf Flooring is designed with attention to the needs of newly weaned calves, replacement heifers, and veal calves. View Calf Flooring »
calf stall
The Dura Dump Calf Watering System was designed to fit with the Dura Bilt Calf Stall as a completely poly-vinyl coated system that will not allow rust to permeate through it and will not harbor bacteria. View Calf Watering Systems »
